- Size: 13000*2500*3380mm
- Place of Origin: Shandong
- Brand Name: FEICHI
- Model Number: LC9409C
- Weight: 1.000 kg
1 . All kinds of hydraulic steering multi axies,low bed modular trailers can be designed and produced.the loading capacity from 200-800T.The length rang from 16m to 50m according to your transport object & the project.
2. A s China Shenzhou X transportation equipment suppliers, we bore a great mission and have made outstanding contributions. And we have always been trying all our efforts to serve our dear customers and making every of them satisfied.

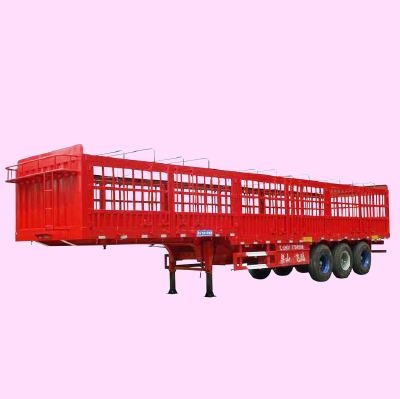

Name | Stake semi trailer |
Trademark | LU CHI |
Manufacturer | Shandong Feichi automobile manufacturing co. ltd. |
Overall dimension | 1 3 000mm* 2500 mm* 3380 mm |
Payload | 34t |
Beam | upper wing plate 12mm, low wing plate 14mm, web 8mm,side beam 140 steel channel . |
King pin | Lengthened 90# |
Suspension | Reversed, 16mm*10leaves |
Axle | FUWA 3*16t |
Tire | 11.00R20,12R22.5,11.00-20 13pcs. (including one spare tire), |
Rim | 8.25 steel disc wheel,13pcs.Made in china |
Goose neck | Optional |
Container locks | One set of 20’twist locks |
ABS | Optional |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint. |
